Our Products.

FLP | FLOOD LIGHT

GENERAL INFORMATION
Part Number FLP-FDL 100 FLP-FDL 150 FLP-FDL 200 FLP-FDL 250
Luminaire Circuit Wattage 100 watt 150 watt 200 watt 250 watt
Primary Running Current 1.30 - 1.85 1.95 - 2.80 2.60 - 3.70 2.50 - 4.20
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 12000 lm 18000 lm 24000 lm 28800 lm
Output Voltage 42 - 54 42 - 54 42 - 54 42 - 68
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

FLP | VESSEL LAMP

GENERAL INFORMATION
Part Number FLP-VSL 9 FLP-VSL 15 FLP-VSL 20 FLP-VSL 30
Luminaire Circuit Wattage 9 watt 15 watt 20 watt 30 watt
Primary Running Current 300 mA 600 mA 600 mA 900 mA
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 1080 lm 1800 lm 2400 lm 3600 lm
Output Voltage 15 - 30 v 15 - 30 v 18 - 35 v 20 - 35 v
Input Voltage (V) 180 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

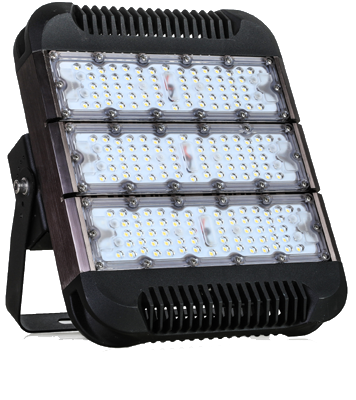

HM-FDL SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number HM-FDL 150 HM-FDL 200 HM-FDL 300
Luminaire Circuit Wattage 150 watt 200 watt 300 watt
Primary Running Current 1.95 - 2.80 2.60 - 3.70 1.85 - 3.70
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w
Lumen Output 18000 lm 24000 lm 36000 lm
Output Voltage 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

HFDL SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number HFDL 60 HFDL 100 HFDL 150 HFDL 200
Luminaire Circuit Wattage 60 watt 100 watt 150 watt 200 watt
Primary Running Current 0.80 - 1.45 1.30 - 1.85 1.95 - 2.80 2.60 - 3.70
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 7200 lm 12000 lm 18000 lm 24000 lm
Output Voltage 36 - 54 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

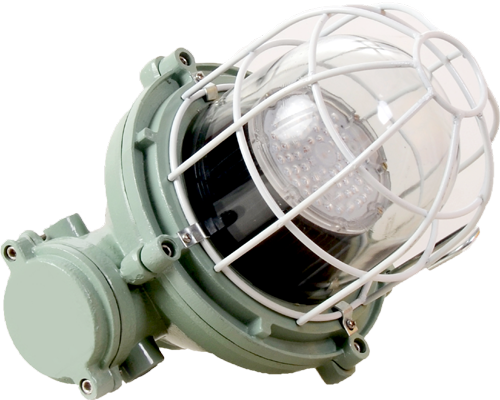

FLP | WALL GLASS LIGHT

GENERAL INFORMATION
Part Number FLP-WGL 35 FLP-WGL 50 FLP-WGL 60 FLP-WGL 75
Luminaire Circuit Wattage 35 watt 50 watt 60 watt 75 watt
Primary Running Current 0.65 - 1.20 0.70 - 1.20 0.80 - 1.45 1.00 - 1.40
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 4200 lm 6000 lm 7200 lm 9000 lm
Output Voltage 24 - 42 36 - 54 36 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

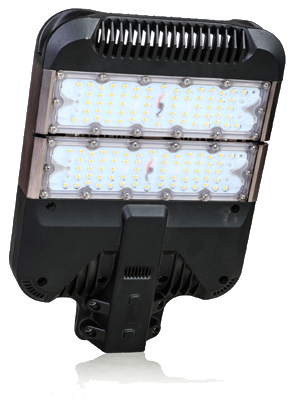

MSL PRO SERIES | STREET LIGHT

GENERAL INFORMATION
Part Number MSL - P 100 MSL - P 150 MSL - P 200
Luminaire Circuit Wattage 100 watt 150 watt 200 watt
Primary Running Current 1.30 - 1.85 1.95 - 2.80 2.60 - 3.70
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w
Lumen Output 12000 lm 18000 lm 24000 lm
Output Voltage 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

MFDL SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number MFDL 50 MFDL 100 MFDL 150 MFDL 200
Luminaire Circuit Wattage 50 watt 100 watt 150 watt 200 watt
Primary Running Current 0.70 - 1.55 1.30 - 1.85 1.95 - 2.80 2.60 - 3.70
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 6000 lm 12000 lm 18000 lm 24000 lm
Output Voltage 24 - 42 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

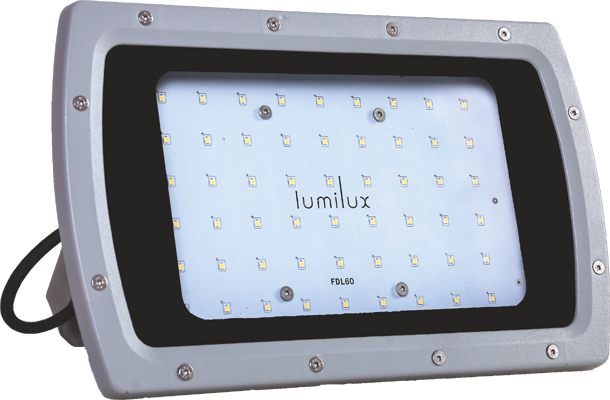

FDL SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number FDL 100 FDL 150
Luminaire Circuit Wattage 100 watt 150 watt
Primary Running Current 1.30 - 1.85 1.95 - 2.80
Lumens Per Circuit Watt 120 lm/w 120 lm/w
Lumen Output 12000 lm 18000 lm
Output Voltage 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

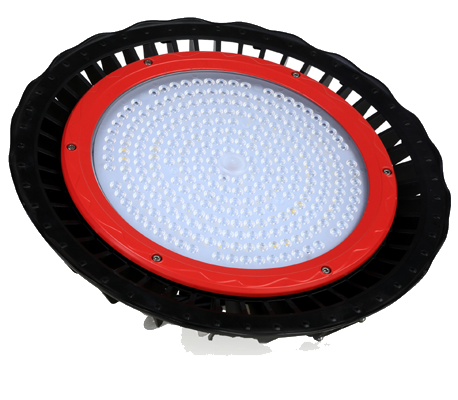

HBL PRO SERIES | HIGH BAY LIGHT

GENERAL INFORMATION
Part Number HBL - P 60 HBL - P 120 HBL - P 160 HBL - P 200 HBL - P 240
Luminaire Circuit Wattage 60 watt 120 watt 160 watt 200 watt 240 watt
Primary Running Current 0.75 - 1.45 1.20 - 2.10 1.70 - 2.85 2.00 - 3.60 2.50 - 4.20
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 7200 lm 14400 lm 19200 lm 24000 lm 28800 lm
Output Voltage 27 - 54 42 - 68 42 - 68 42 - 68 42 - 68
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

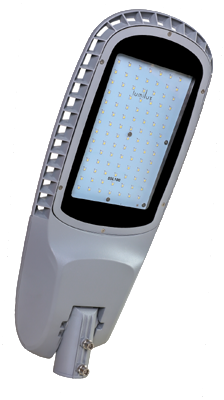

SSL SERIES | STREET LIGHT

GENERAL INFORMATION
Part Number SSL 75 SSL 100 SSL 150
Luminaire Circuit Wattage 75 watt 100 watt 150 watt
Primary Running Current 1.00 - 1.40 1.30 - 1.85 1.95 - 2.80
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w
Lumen Output 9000 lm 12000 lm 18000 lm
Output Voltage 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva / 6 Kva / 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

FDL SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number FDL 30 FDL 50 FDL 70
Luminaire Circuit Wattage 30 watt. 50 watt. 70 watt.
Primary Running Current 0.65 - 1.20 0.70 - 1.55 1.35 - 1.95
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w
Lumen Output 3600 lm 6000 lm 8400 lm
Output Voltage 24 - 42 24 - 42 24 - 36
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 4 Kva & 6 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

MSL SERIES | STREET LIGHT

GENERAL INFORMATION
Part Number MSL 50 MSL 100 MSL 150 MSL 200
Luminaire Circuit Wattage 50 watt. 100 watt. 150 watt. 200 watt.
Primary Running Current 0.70 - 1.55 1.30 - 1.85 1.95 - 2.80 2.60 - 3.70
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 6000 lm 12000 lm 18000 lm 24000 lm
Output Voltage 24 - 42 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

DSL SERIES | STREET LIGHT

GENERAL INFORMATION
Part Number DSL 35 DSL 50 DSL 80 DSL 100 DSL 120
Luminaire Circuit Wattage 35 watt. 50 watt. 80 watt. 100 watt. 120 watt.
Primary Running Current 0.65 - 1.20 0.70 - 1.20 1.00 - 2.40 1.30 - 1.85 1.55 - 2.24
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
Lumen Output 4200 lm 6000 lm 9600 lm 12000 lm 14400 lm
Output Voltage 24 - 42 36 - 54 42 - 54 42 - 54 42 - 54
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 6 Kva & 10 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67

HIGHMUST SERIES | FLOOD LIGHT

GENERAL INFORMATION
Part Number HMF 300 HMF 400 HMF 500
Luminaire Circuit Wattage 300 watt. 400 watt. 500 watt.
Primary Running Current 3.20 - 5.60 3.20 - 5.60 3.50 - 6.20
Lumens Per Circuit Watt 120 lm/w 120 lm/w 120 lm/w
Lumen Output 36000 lm 48000 lm 60000 lm
Output Voltage 42 - 68 42 - 68 42 - 68
Input Voltage (V) 90 to 305 Vac
Operating Frequency (Hz) 50/60Hz
Driver Certification UL/TUV/BIS
Power Factor 0.95
Thermal Cut Out Yes
Protection 15 Kva
Colour Temperature (K) 3000 K / 4500 K / 6000 K
Ingress Protection (IP) IP 67
